SNK-Nissin Table Type Boring Mill, Model BP 130/3.5, 5.1 Spindle, X-138", Y-98", Z- 27.5", 71" X 98" Table, 2500 RPM, 40 HP, 2010, Fanuc CNC

SNK-Nissin Table Type Boring Mill, Model BP 130/3.5, 5.1 Spindle, X-138", Y-98", Z- 27.5", 71" X 98" Table, 2500 RPM, 40 HP, 2010, Fanuc CNC
Location:Iowa
Description
The SNK-Nissin Model BP 130/3.5 is a robust and efficient table-type boring mill suitable for various machining applications. Manufactured in 2010, this machine features a 5.1-inch spindle capable of operating up to 2500 RPM. It offers substantial movement with an X-axis travel of 138 inches, a Y-axis travel of 98 inches, and a Z-axis travel of 27.5 inches, making it versatile for different workpieces. Equipped with a spacious 71 x 98-inch table, the boring mill is well-suited for larger components. The machine's 40 HP motor ensures it delivers consistent power, enhancing performance during demanding tasks. Furthermore, the machine is designed with Fanuc CNC controls, known for their reliability and precision, providing users with a user-friendly interface and excellent control over the machining process. This used CNC table horizontal boring mill from SNK-Nissin is a solid option for businesses seeking to enhance their milling capabilities without compromising on performance or control.
Specifications
| Manufacturer | SNK-Nissin |
| Model | BP130/3.5 |
| Year | 2010 |
| Condition | Used |

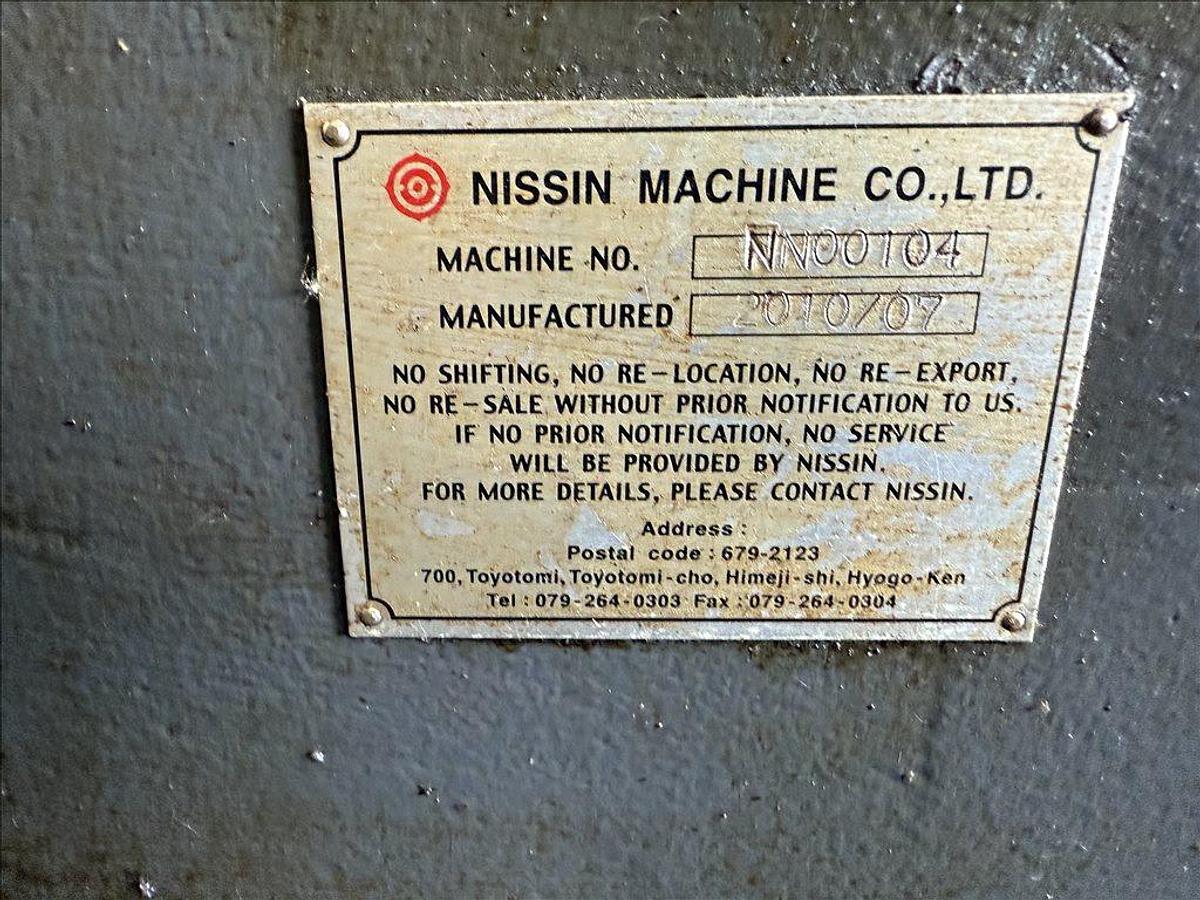

| Serial Number | NN00104 |
| Stock Number | 17876 |

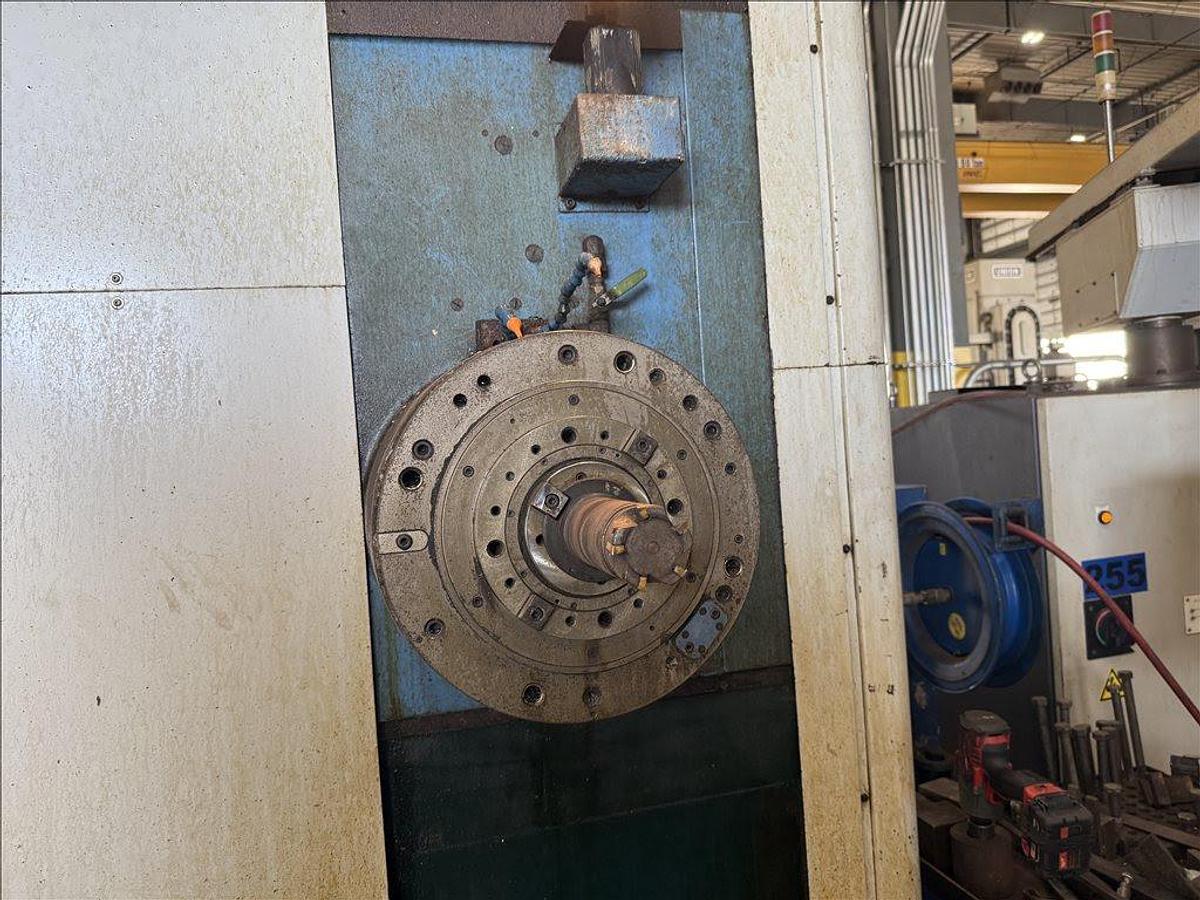

| Spindle Diameter | 5.1" |
| X-Travel | 138" |
| Y-Travel | 98" |
| Z-Travel (Quill) | 27.5" |
| W-Travel (Saddle) | 63" |
| Spindle Drive | 40 HP |
| Spindle Speed | 2500 RPM |
| Spindle Taper | Cat 50 |

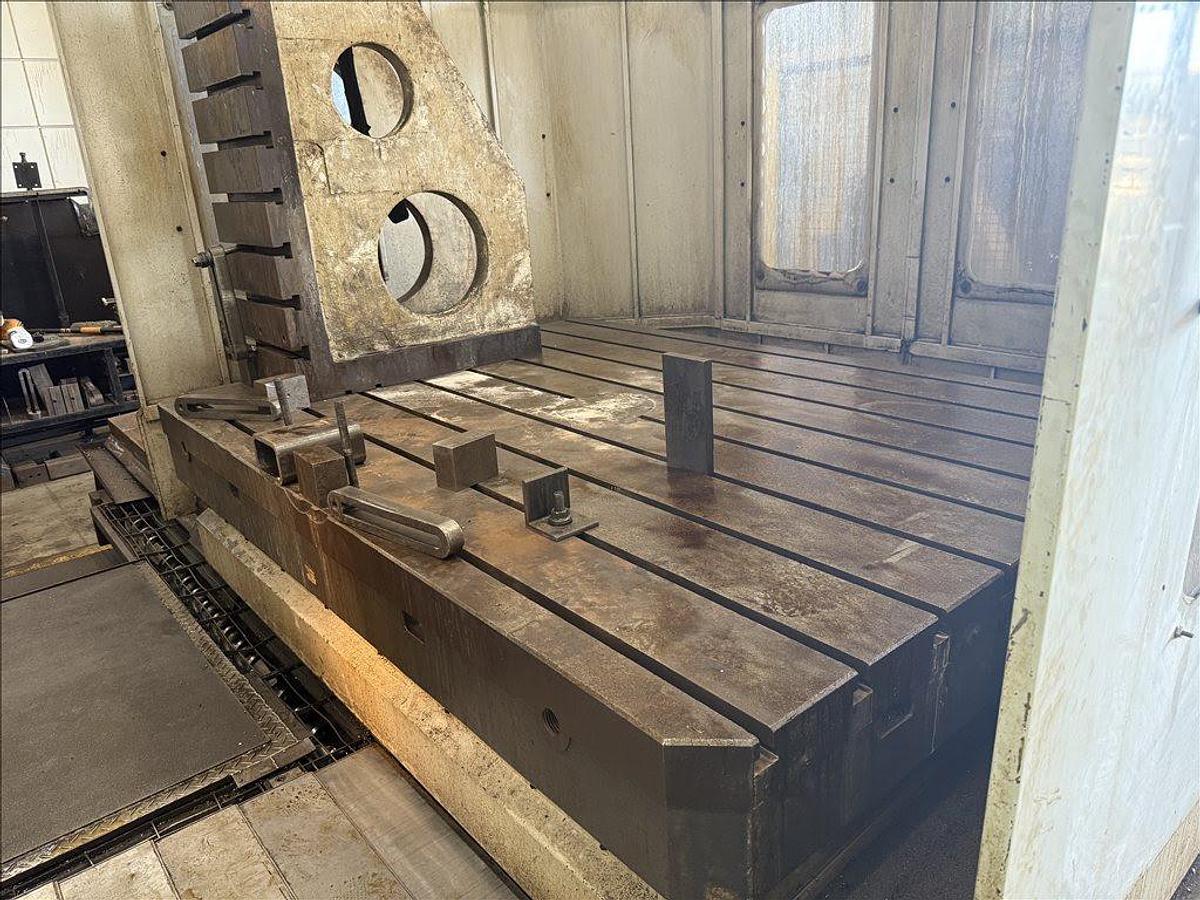

| Table Size | 70" X 98" |
| Table Capacity | 40,000 lbs |
| Machine Weight | 80,000 lbs |
| Automatic Tool Changer | 60 Tools |

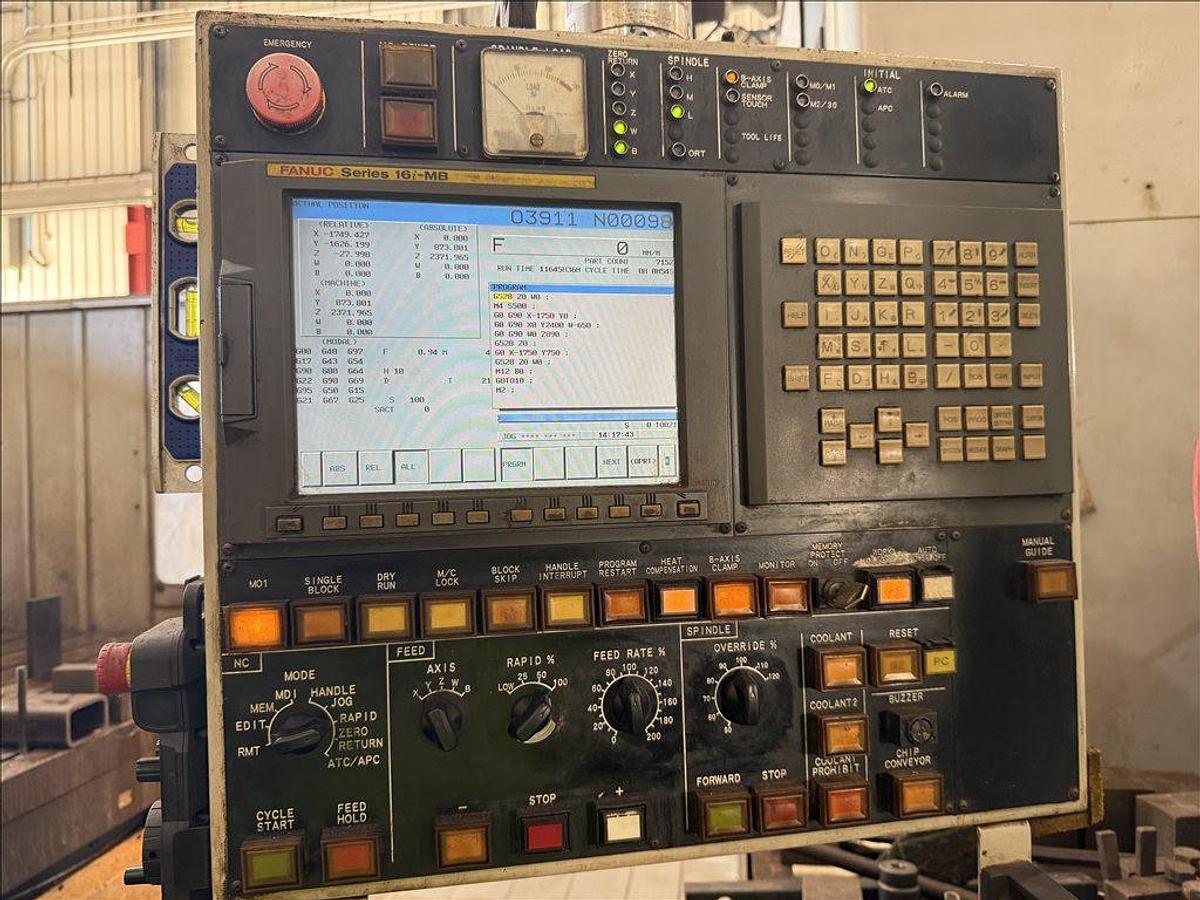

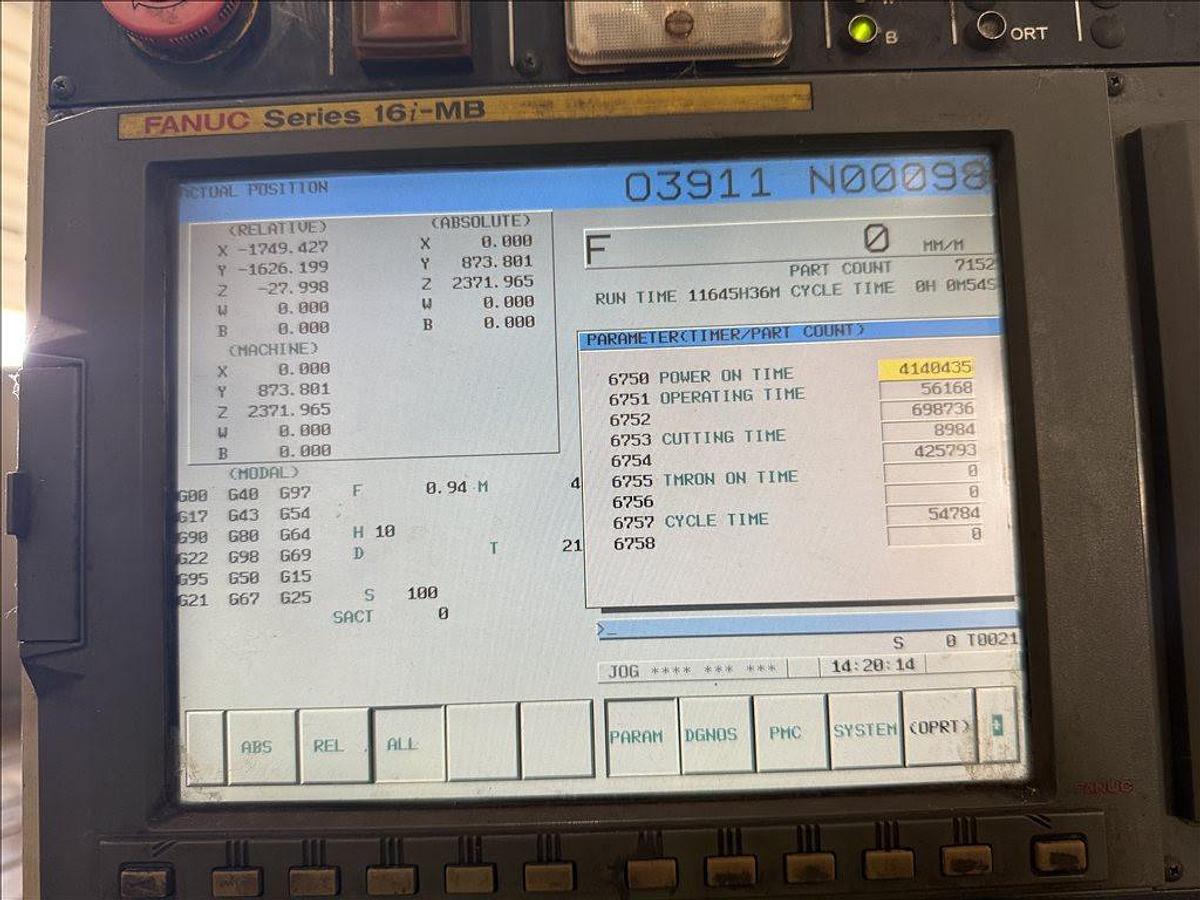

| Control | Fanuc 16i MB |
| Condition | Excellent |
| Equipped With | Full 4th Axis, 90 degree shot pins, Coolant, Chip Conveyor |
