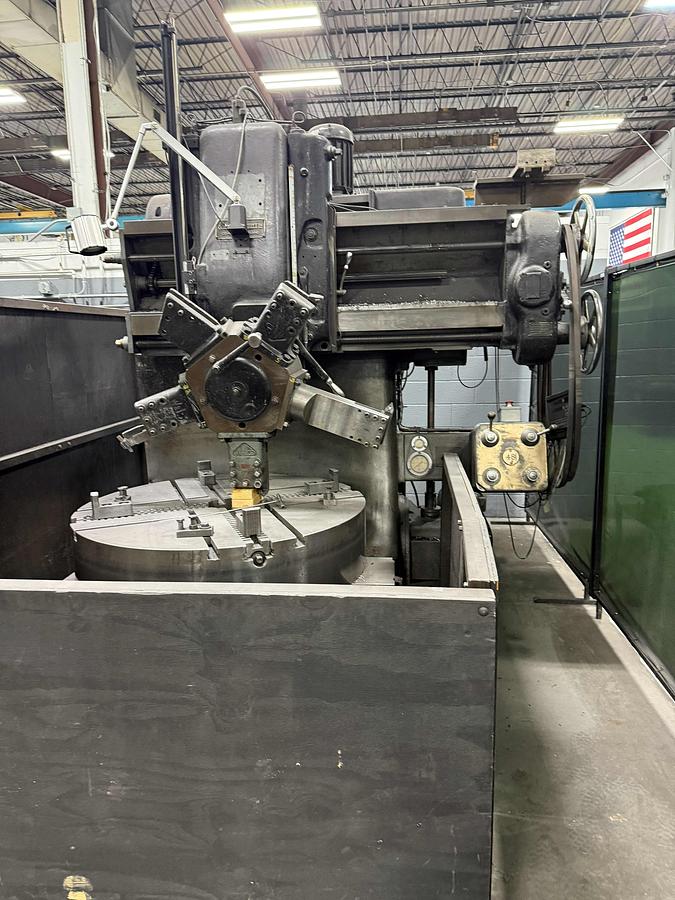

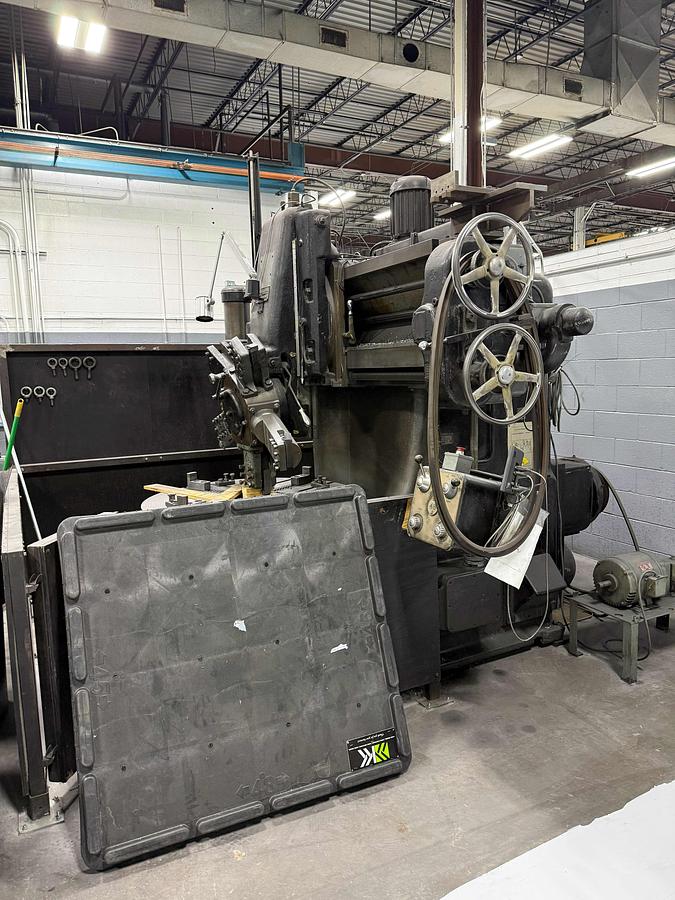

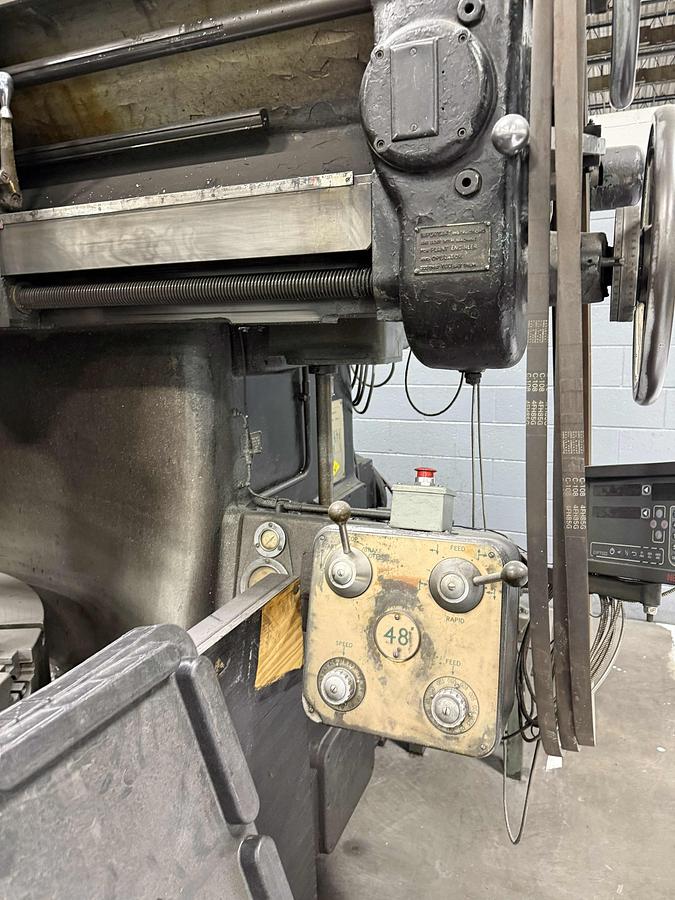

Webster Bennet Vertical Turret Lathe, 48" Chuck, 56" Swing, 5 Position Turret

Webster Bennet Vertical Turret Lathe, 48" Chuck, 56" Swing, 5 Position Turret
Location:North Carolina
Description

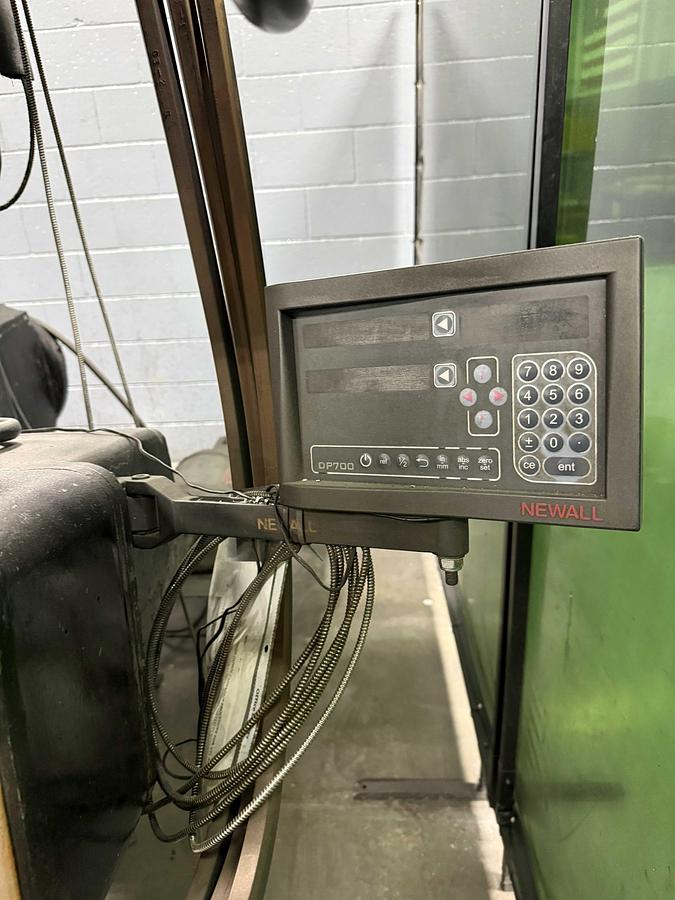

The Webster Bennet Vertical Turret Lathe features a robust 48-inch chuck, perfect for handling larger workpieces with a maximum swing capacity of 55 inches. Designed for efficiency, this lathe provides a height of 36 inches under the rail, which accommodates a variety of materials and sizes. Its table is driven by a powerful 30 HP motor, ensuring reliable performance during heavy-duty operations. Additionally, the lathe's table speed reaches up to 125 RPM, delivering smooth and precise rotations necessary for intricate machining tasks. Equipped with a 5-position turret and a fixed rail, this model enhances versatility and precision, adapting to complex industrial requirements. Included digital readout (DRO) increases measurement accuracy, facilitating better control over machining processes. The used condition offers a cost-effective solution for businesses seeking high-quality production capabilities without the expense of new equipment.
Specifications
| Manufacturer | Webster Bennet |
| Model | 48 |
| Year | 1965 |
| Condition | Used |

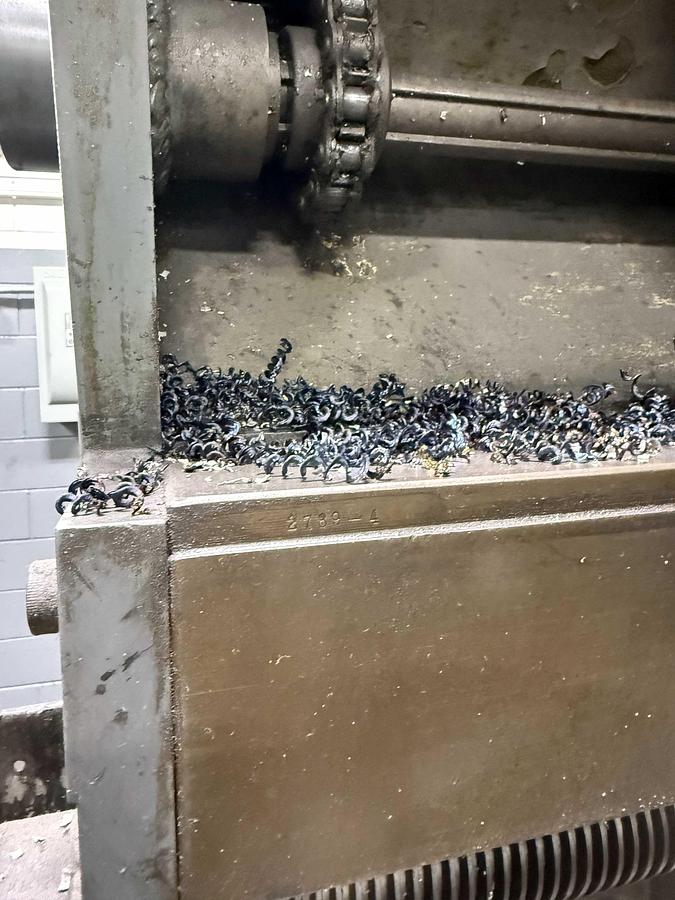

| Serial Number | 2789-4 |
| Stock Number | 17860 |
| Chuck diameter | 48" |
| Maximum Swing | 55" |
| Height under rail | 36" |
| Table Drive | 30 HP |
| Table speed | 125 RPM |
| Equipped with | DRO, 5 Position Turret, Fixed Rail |
