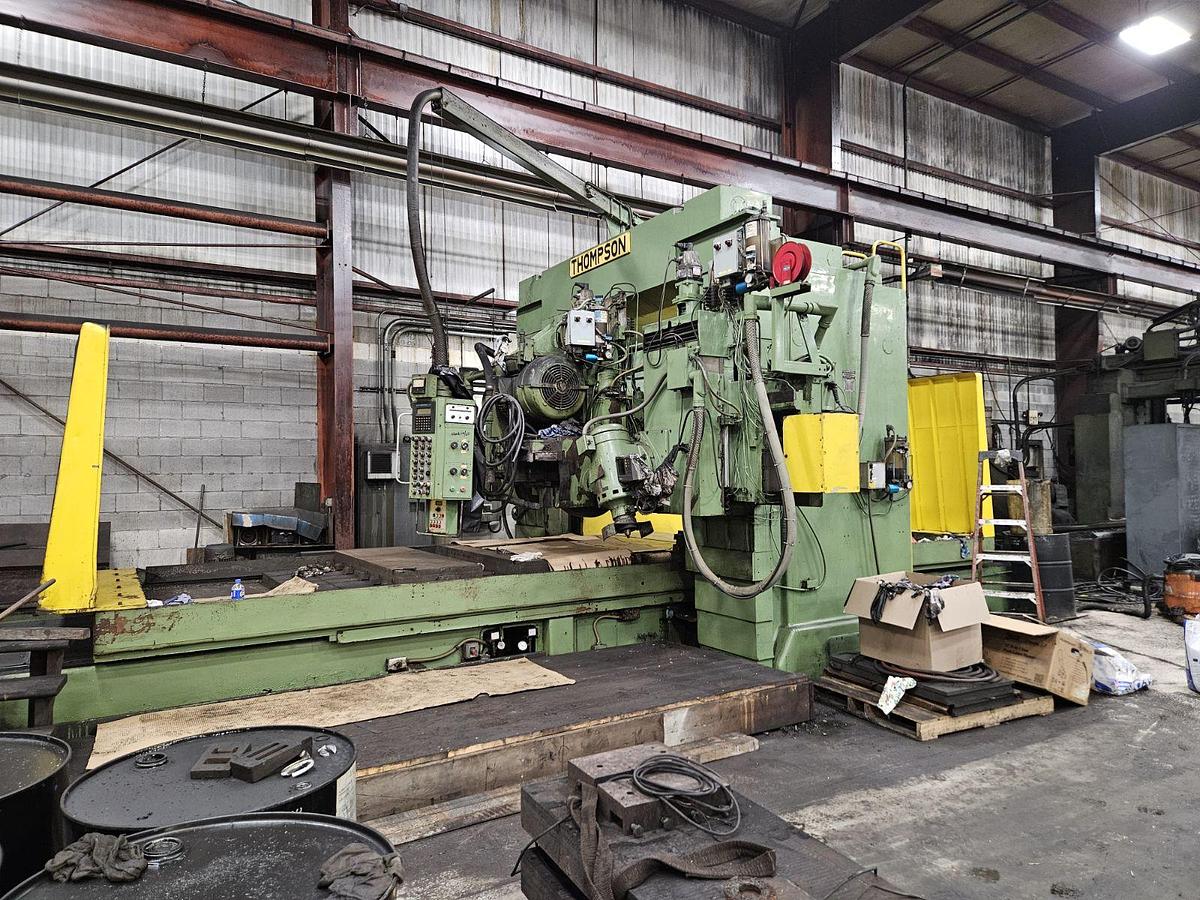

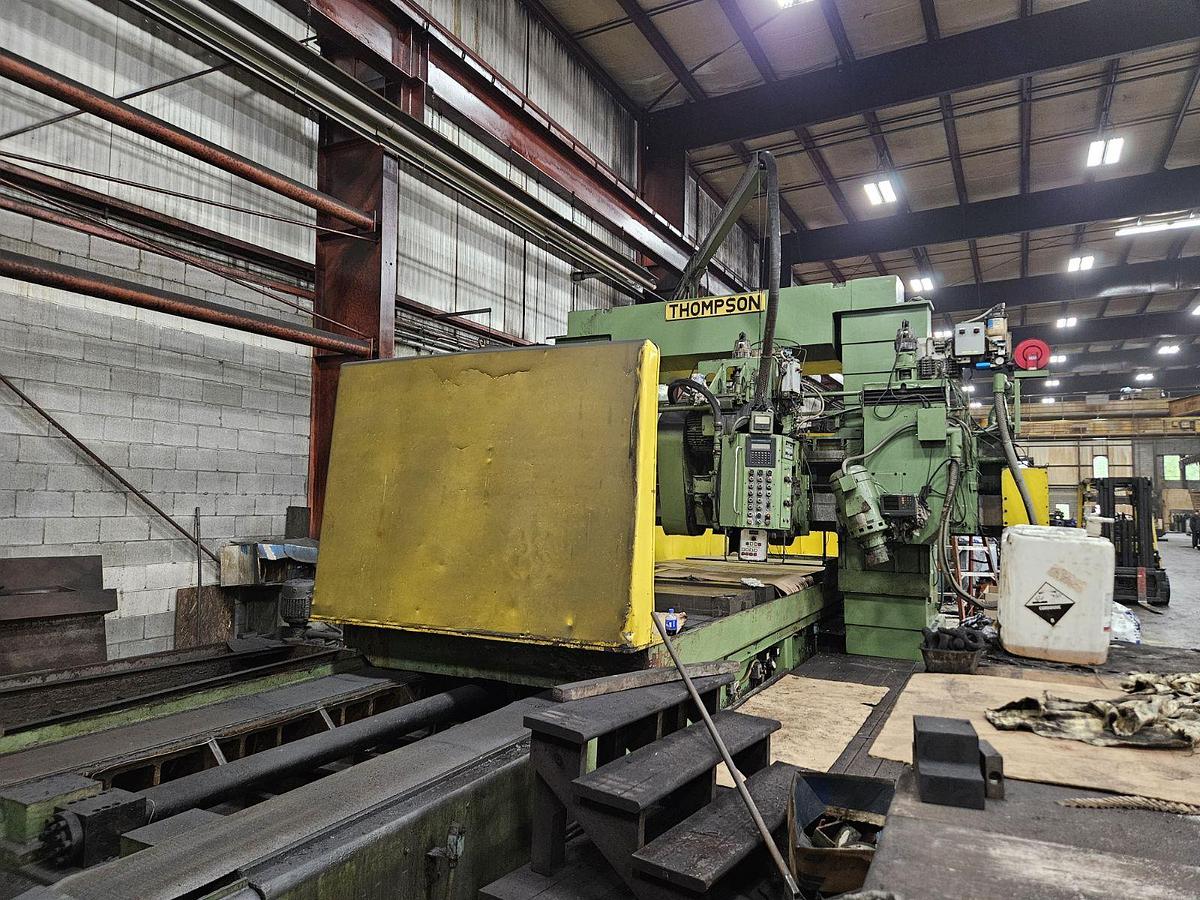

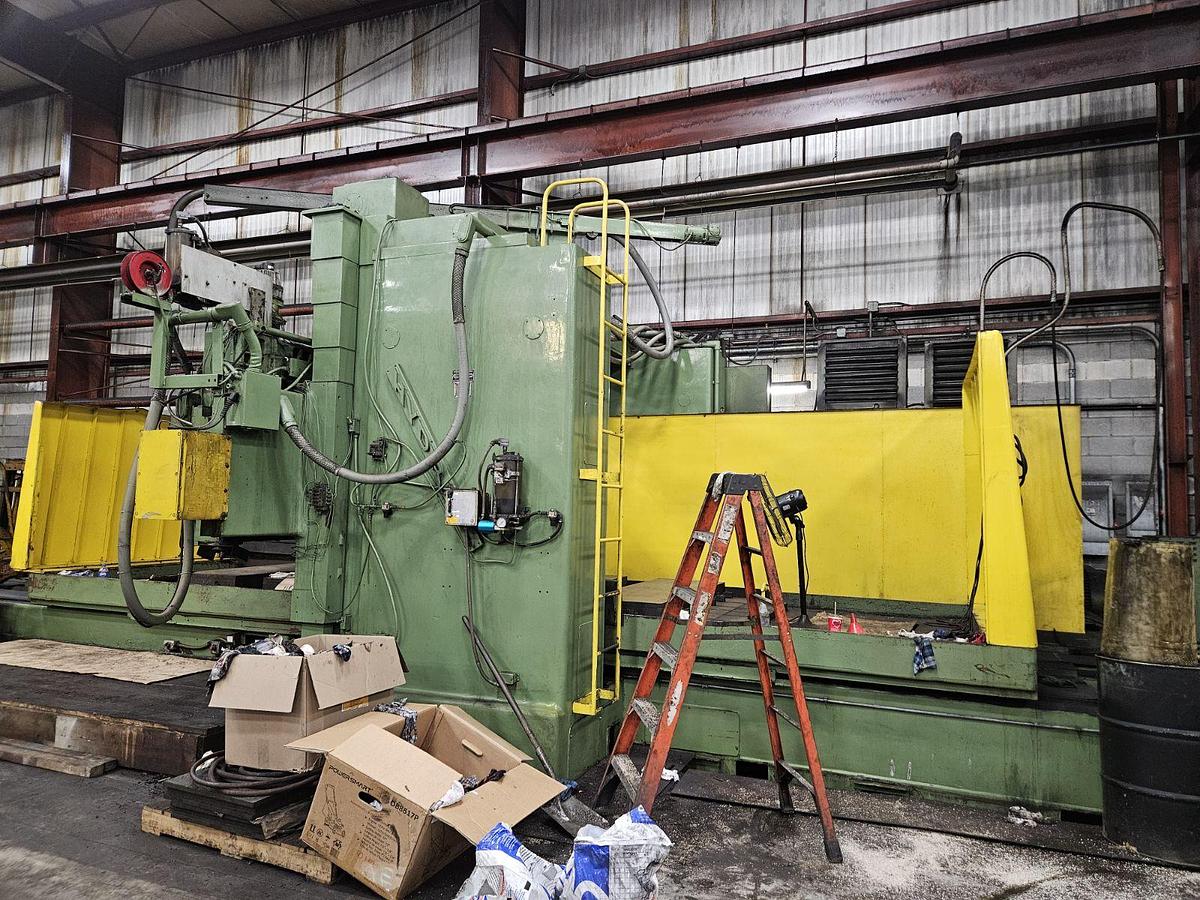

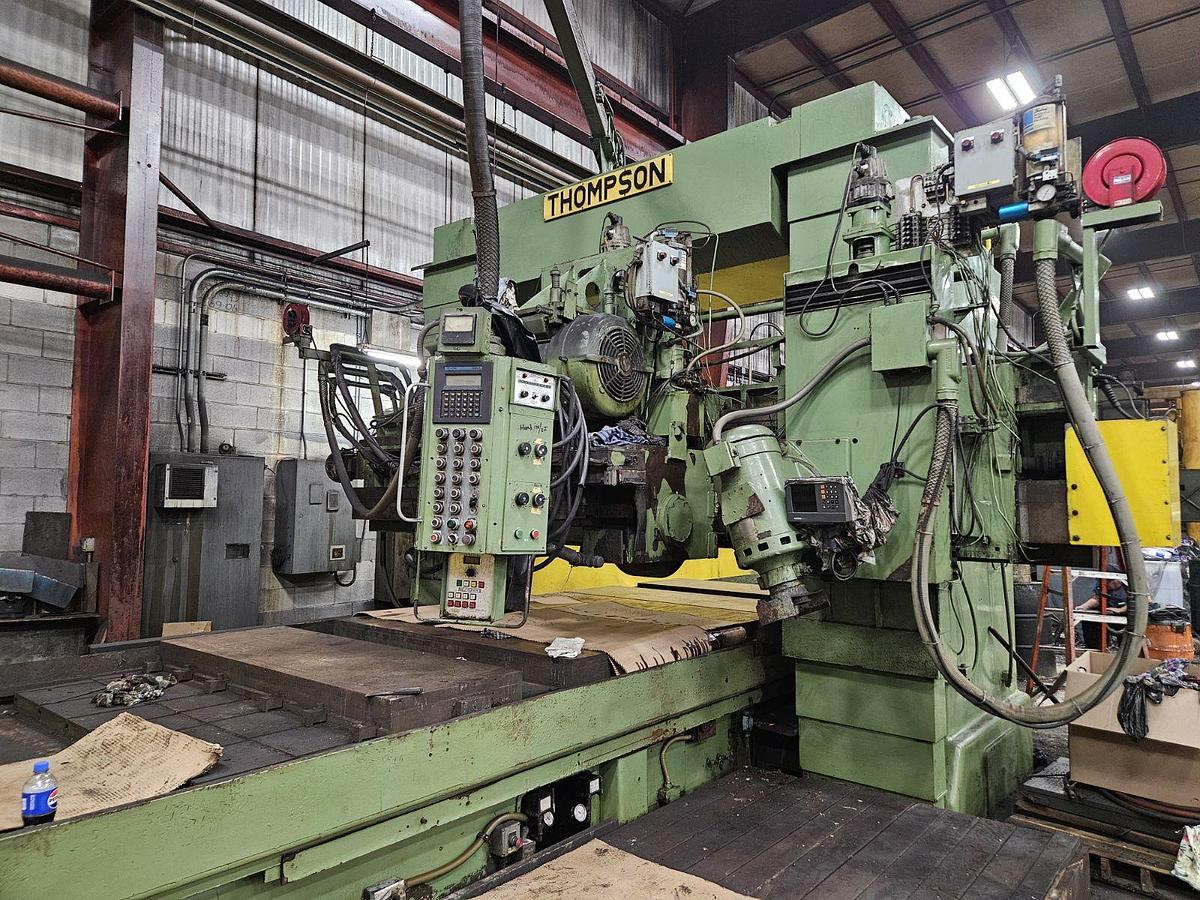

Thompson Bridge Style Reciprocating Surface Grinder, Model 16CX, 72" X 196" Table, Table Stroke 206", Grinding Head Stroke 84", 75 HP Spindle Drive

The Thompson 16CX Bridge Style Reciprocating Surface Grinder is a robust machine designed for large-scale surface grinding tasks. Featuring a substantial 72" x 196" table and a table stroke of 206", it is well-equipped to handle extensive workpieces effectively. The grinding head offers a stroke of 84", providing ample coverage for varied operations. Powered by an impressive 75 HP spindle drive, the grinder operates at variable speeds up to 1150 RPM, accommodating diverse grinding requirements. The machine supports a grinding wheel with a diameter of 20", a width of 8", and a hole size of 12", enabling efficient material removal and finish. Additionally, the maximum height under the wheel reaches 43", allowing for processing thicker materials. This grinder includes significant features like a 15 HP tilting horizontal grinding spindle, an electro-magnetic chuck, and a PLC control system for enhanced precision and control. The automatic downfeed and power elevation facilitate ease of use and improve productivity. With integrated coolant systems, it manages heat dissipation effectively during prolonged operations. This used grinder is ideal for industries requiring reliable and precise surface finishing capabilities.
