5" Toshiba Horizontal Boring Mill, Model 13C, Table 79" X 79", X-120", Y-79", 50 Taper, 1200 rpm, 20 hp, Newall DRO, ID17627
No longer available
5" Toshiba Horizontal Boring Mill, Model 13C, Table 79" X 79", X-120", Y-79", 50 Taper, 1200 rpm, 20 hp, Newall DRO, ID17627
Location:Kentucky
Description
1978 5" Toshiba Horizontal Boring Mill, Model 13C, Table 79" X 79", X-120", Y-79", 50 Taper, 1200 rpm, 20 hp, Built in Rotary Table, Way covers, Newall DRO ID17627
Specifications
| Manufacturer | Toshiba/Shibaura |
| Model | 13CR4BD |
| Year | 1978 |
| Condition | Used |
| Serial Number | 143374-1K |
| Stock Number | 17627 |
| Spindle diameter | 5" |
| Spindle drive hp | 20 |
| Spindle speed (rpm) | 9-1200 rpm |
| Spindle taper | No 50 |
| Table length | 79" |
| Table width | 79" |
| X axis travel | 120" |
| Y axis travel | 79" |
| Quill travel | 35.4" |

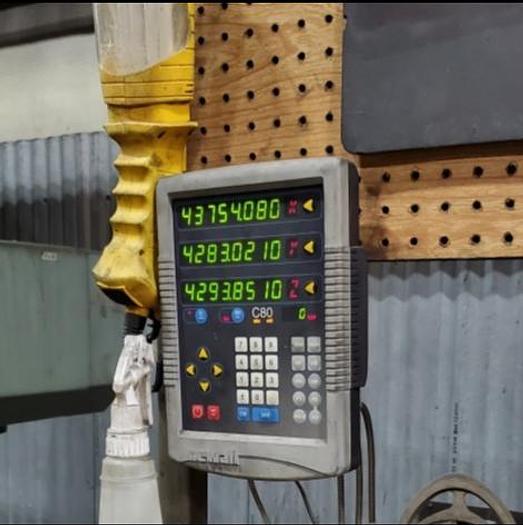

| Equipped with | Hard Ways, Newall DRO System, Facing Head, Right Angle Head, Way Covers |
