Vision Wide Vertical Machining Center, VF 4000, 81" X 165" Table, X-165", Y-90.5", Z-36.2", Fanuc 18iMB,
Vision Wide Vertical Machining Center, VF 4000, 81" X 165" Table, X-165", Y-90.5", Z-36.2", Fanuc 18iMB,
Location:Oklahoma
or
Call (615) 459-7983
Description

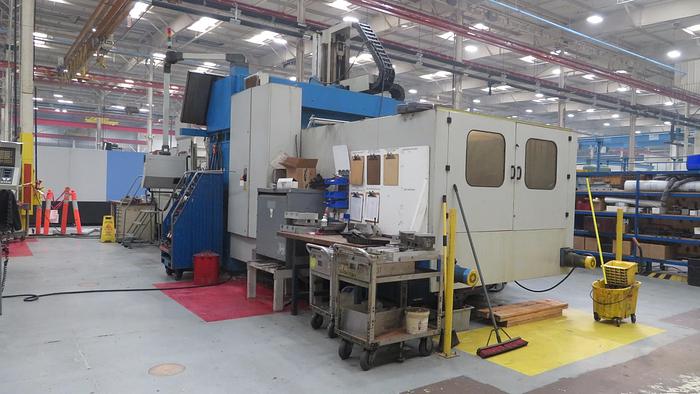

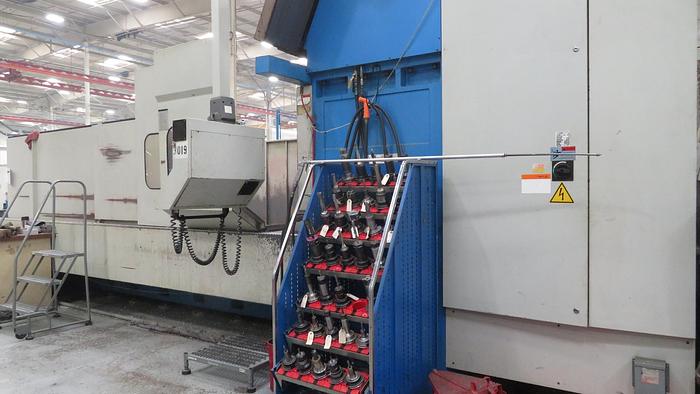

2008 Vision Wide Double Column VMC, Model VF 4000, 81" X 165" Table, X Travel 165", Y Travel 90.5", Z Travel 36.2", Fanuc 18iMB CNC
Specifications
| Manufacturer | Vision Wide |
| Model | VF 4000 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 17810 |
| Table Length | 165" |
| Table Width | 81" |
| Table Capacity | 28,600 LBS |
| X-Travel | 165.5" |
| Y-Travel | 90.5" |
| Z-Travel | 36.2" |
| Distance between Columns | 98.5" |
| Maximum Height under Spindle | 42" |
| Spindle Motor | 30 HP |
| Spindle Speed | 6,000 rpm |
| Spindle Taper | Cat 50 Taper |
| Machine Weight | 84,500 lbs. |
| Control | Fanuc 18iMB |
| Automatic Tool Changer | 40 |
| Equipped with | Chip Conveyor, Ball Screws, Coolant Through Spindle, 4th Axis Prewire |
