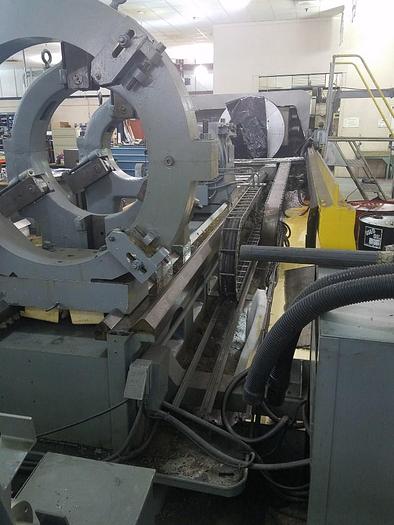

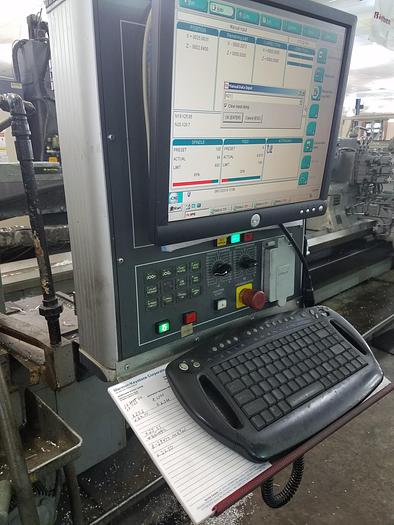

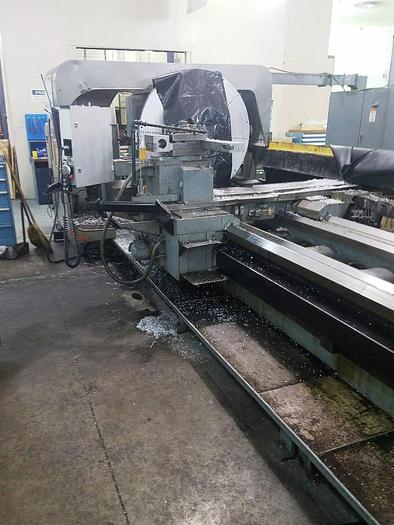

American CNC Lathe, Model 53-35, 53” X 252”, 630 rpm, 50 hp, Machine Mate CNC, ID17614
American CNC Lathe, Model 53-35, 53” X 252”, 630 rpm, 50 hp, Machine Mate CNC, ID17614
Tennessee
orCall (615) 459-7983
Description
American CNC Lathe, Model 53-35, 53” X 252”, 630 rpm, 50 hp, Machine Mate CNC, ID17614
Specifications
| Manufacturer | American |
| Model | 53-35 |
| Condition | Used |
| Stock Number | 17614 |
| Swing Over Bed Ways | 53" |
| Swing over Cross Slide | 35" |
| Distance between Centers | 252" |
| Spindle speeds (rpm) | 2-630 |
| Spindle drive motor | 50 |
| Spindle bore | 5" |
| Maximum Load Between Centers | 35,200 |
| Machine Weight | 56,000 |
| Machine Foot Print | 93" X 375" |

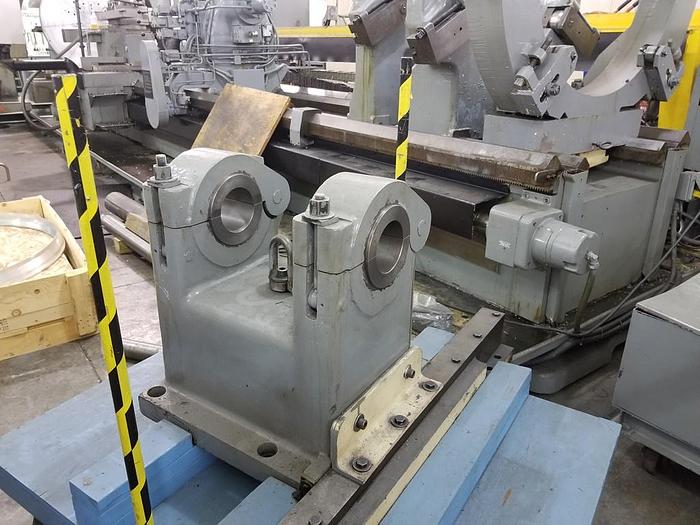

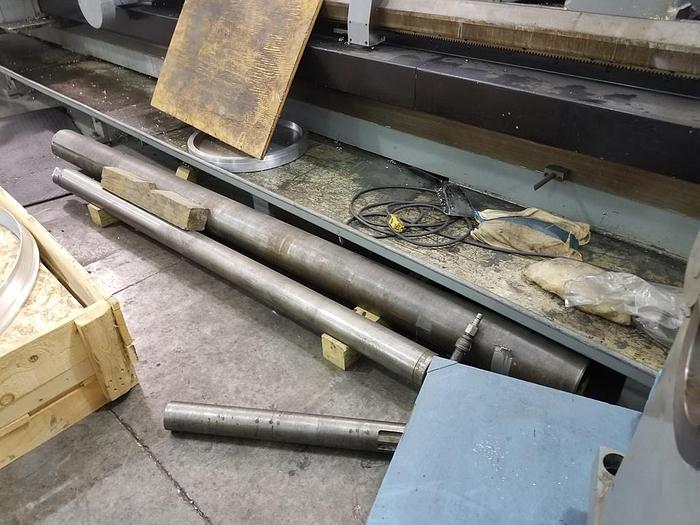

| Equipped With: | 36" 4 Jaw Chuck, (3) Roller Rest, Hydraulic Tailstock, Boring Bar Attachment, (1) Boring Bar, RS 232 Port for programming, Chip Guarding, Coolant |
