Toshiba TX 13
No longer available
Toshiba TX 13
Ohio
Description

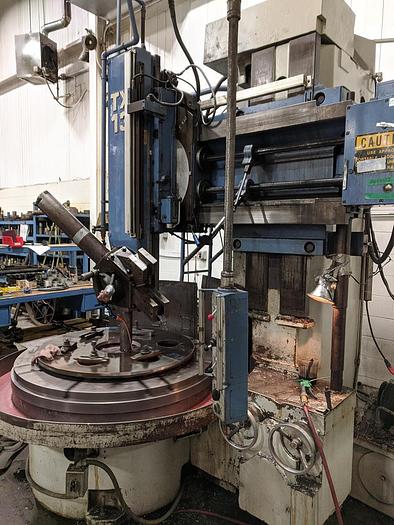

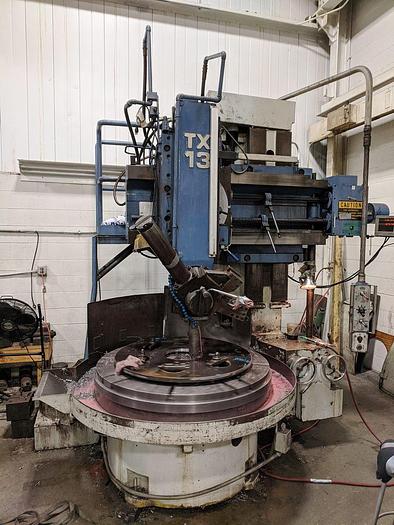

Toshiba, Vertical Turet Lathe, MOdel TX 13, 493.5" Table, 63" wing, 41" Under Rail, 5 Position Turret, DRO
Specifications
Manufacturer | Toshiba |
Model | TX 13 |
Condition | Used |
Stock Number | 17603 |
Table Diameter | 49.5" |
Maximum Swing | 63" |
Maximum Turning Height | 41.3" |
Swivel Angle Of Turret Head | +/- 30 degrees |
Vertical Travel of Turret Head | 29.5" |
Vertical Travel of Rail | 31.5" |
Maxmium Table Load | 11,000 lbs |
Table speeds | 4.5-200 rpm |
Table Drive | 30 hp |
Machine Foot Print | 125" X 91" X 113" High |
Equipped with: | Pendant Control, 5 Position Turret, Manuals, Coolant System, |
