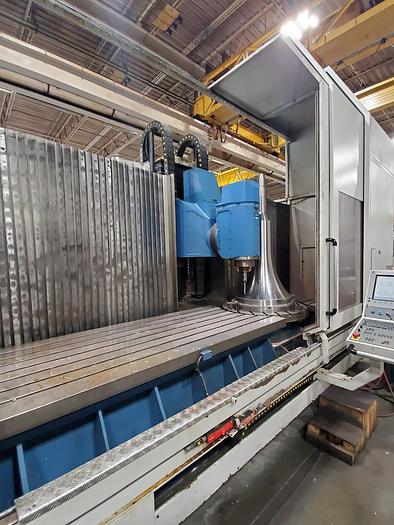

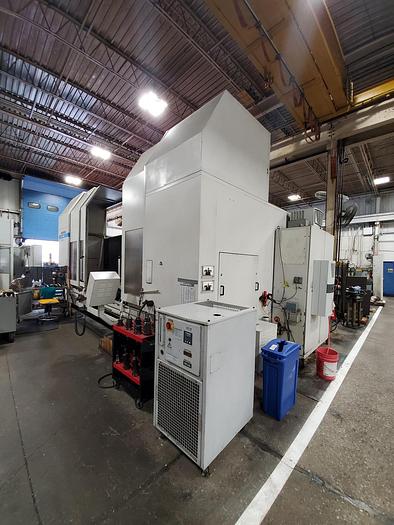

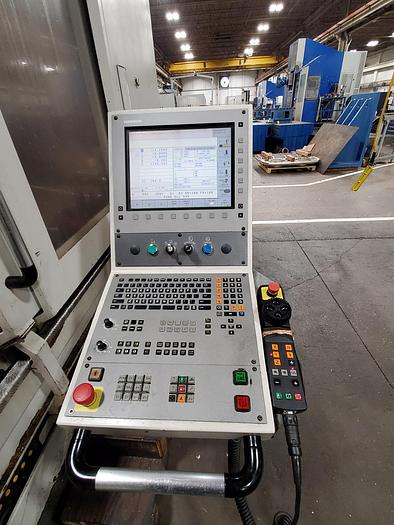

Ibarmia Model ZVH58L4000 CNC Traveling Column 5X Vertical Machining Center with Heidenhain iTNC530 s/n 7623 (Installed new in 2009)
![Used Ibarmia Model ZVH58L4000 CNC Traveling Column 5X Vertical Machining Center with Heidenhain iTNC530 s/n 7623 (Installed new in 2009)](https://i.machineryhost.com/5737034557ef5b8c02c0e46513b98f90/a366f90d01f661fe6d9a8a88adeb6911/large-used-ibarmia-model-zvh-58-l4000-cnc-traveling-column-5-x-vertical-machining-center-with-heidenh.jpg)
Ibarmia Model ZVH58L4000 CNC Traveling Column 5X Vertical Machining Center with Heidenhain iTNC530 s/n 7623 (Installed new in 2009)
Location:Ohio
Description
2009 Ibarmia Traveling Column 5 Axis Machining Center, Model ZVH58L, X travel
Specifications
Manufacturer | Ibarmia |
Model | ZVH58L |
Year | 2009 |
Condition | Used |
Stock Number | 17771 |
Table Size | 42" X 180" |
X Travel | 157" |
Y Travel | 39.5" |
Z Travel | 34" |
Spindle Drive | 50 HP |
Spindle Speeds | 6-6000 RPM |
Spindle Taper | Cat 50 |
Rotary Table Size | 39.5" |
Rotary Table Weight Capacity | 5,500 lbs |
A Axis | =/- 120 degrees |
B Axis | 360 degrees |
Automatic Tool Changer | 40 Tools |
Equipped With: | • Heidenhain Scale Feedback • Star Roller Guide axes bearings • Full machine guarding including roof • Coolant thru spindle (360 PSI) with filtration system • Coolant spray wash guns • Through spindle air blow • Divider wall with interlocks for 2 station pendulum machining • Complete documentation |
