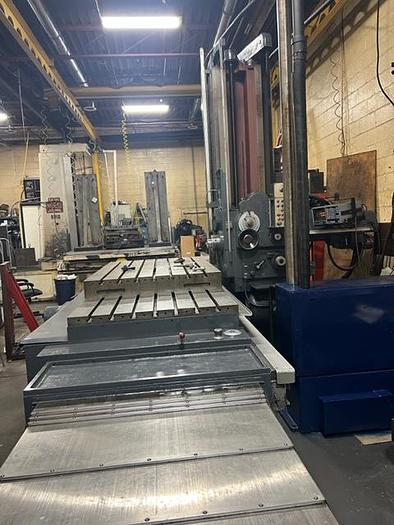

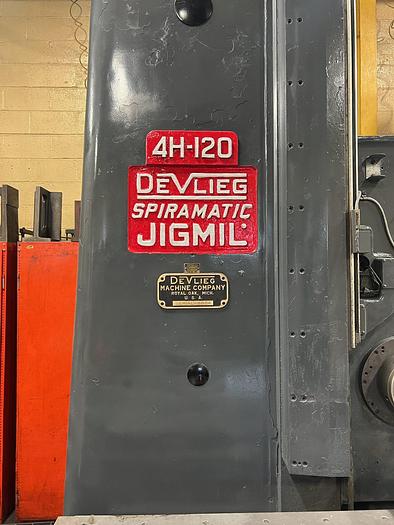

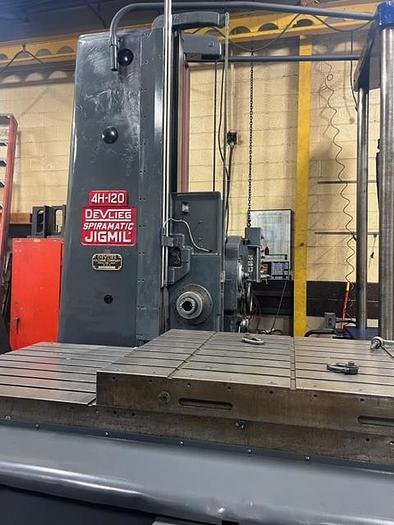

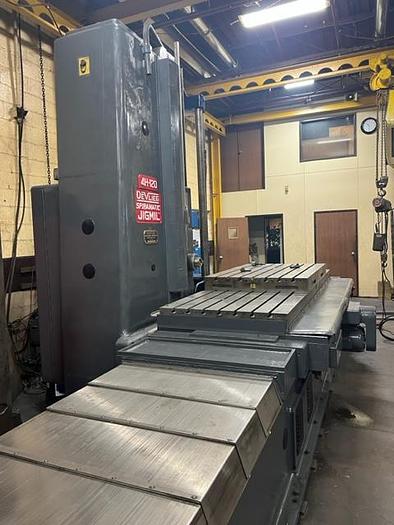

4" DeVlieg Horizontal Jig Mill, Model 4H-120, X Travel 120", Y Travel 72", 50 Taper, 1000 RPM, DRO, Rotary table
No longer available
4" DeVlieg Horizontal Jig Mill, Model 4H-120, X Travel 120", Y Travel 72", 50 Taper, 1000 RPM, DRO, Rotary table
Location:Michigan
Description
4" DeVlieg Horizontal Jig Mill, Model 4H-120, X Travel 120", Y Travel 72", 50 Taper, 1000 RPM, DRO, Rotary table
Specifications
| Manufacturer | DeVlieg |
| Model | 4H-120 |
| Condition | Used |
| Stock Number | 17760 |
| Spindle diameter | 4" |
| Spindle drive | 20 HP |
| Spindle Speeds | 10-1000 RPM |
| Spindle taper | No 50 |
| Table length | 120" |
| Table width | 40" |
| X travel | 120" |
| Y travel | 72" |
| Z Travel | 16" |
| W travel (saddle) | 24" |
| Equipped With | E type Rotary Table, Power Draw Bar, Accu Rite DRO, Green Button Machine |
