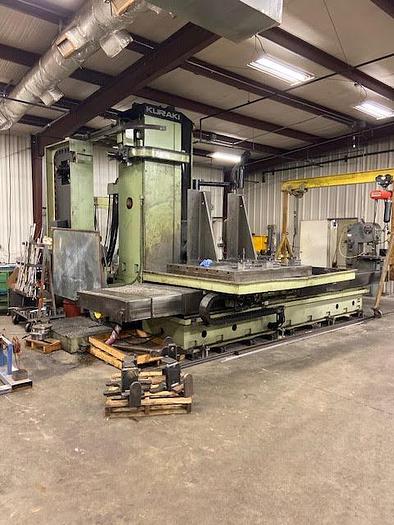

1989 Kuraki Table Type Boring Mill, Model KBT 13 DX, Table 63" X 71", X Travel 119", Y Travel 79", Z Travel 27.5", W Travel 52", 30 HP, 1300 RPM
No longer available
1989 Kuraki Table Type Boring Mill, Model KBT 13 DX, Table 63" X 71", X Travel 119", Y Travel 79", Z Travel 27.5", W Travel 52", 30 HP, 1300 RPM
Location:Arkansas
Description
1989 Kuraki Table Type Boring Mill, Model KBT 13 DX, Table 63" X 71", X Travel 119", Y Travel 79", Z Travel 27.5", W Travel 52", 30 HP, 1300 RPM
Specifications
| Manufacturer | Kuraki |
| Model | KBT 13DX |
| Year | 1989 |
| Condition | Used |
| Stock Number | 17751 |
| Spindle diameter | 5.12" |
| Spindle drive hp | 30 |
| Spindle speed (rpm) | 1300 |
| Spindle taper | No 50 |
| Table length | 63" |
| Table width | 71" |
| Table Load Capacity | 22,000 lbs |
| X axis travel | 119" |
| Y axis travel | 79" |
| Quill travel | 27.5" |
| W Axis travel | 52" |
| Equipped with | Fanuc 11M, 90 Degree Index Table, 40Tool ATC, BT 50 Tooling, |
