CINCINNATI Press Brake, MODEL 400H X 14', 16'OVERALL, 12'6" BETWEEN, HYDRAULIC PRESS BRAKE
CINCINNATI Press Brake, MODEL 400H X 14', 16'OVERALL, 12'6" BETWEEN, HYDRAULIC PRESS BRAKE
Location:Illinois
or
Call (615) 459-7983
Description

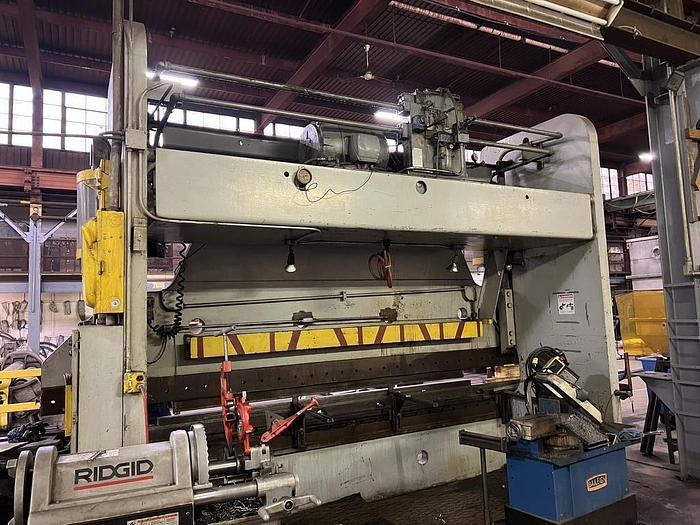

400 TON CINCINNATI MODEL 400H X 14', 16'OVERALL, 12'6" BETWEEN, HYDRAULIC PRESS BRAKE
Specifications
| Manufacturer | Cincinnati |
| Model | 400 H |
| Year | 1964 |
| Condition | Used |
| Stock Number | 17743 |
| Overall Bed Length | 16' |
| Distance Between Housing | 12' 6" |
| Bending Capacity | 400 tons |
| Stroke | 12" |
| Open Height | 20" |
| Closed Height | 8" |
| Bed Height from Floor | 32" |
| Main Motor | 40 HP |
| Machine Weight | 58,500 lbs |
| Approximate Foot Print | 192" L-R X 62" F-B |
| Height Above the Floor | 11' 8" |
| Depth of Pit | 49" |
| Equipped With | Full Length Die Rail, Adjustable Depth Stop, Tonnage Indicator, Front Ram Leveling Adjustment, Rear Ram Depth Adjustment, Rear Part Stops, Foot Pedal, E-Stop |
