2000 Heckert Universal Milling Machine, Model FW 450X1800, Table 17.5" X 71.5", Universal Horizontal Vertical head, Horizontal spindle, DRO, Pendant control
No longer available
2000 Heckert Universal Milling Machine, Model FW 450X1800, Table 17.5" X 71.5", Universal Horizontal Vertical head, Horizontal spindle, DRO, Pendant control
Location:Smyrna, TN
Description
2000 Heckert Universal Milling Machine, Model FW 450X1800, Table 17.5" X 71.5", Universal Horizontal Vertical head, Horizontal spindle, DRO, Pendant control
Specifications
| Manufacturer | www Heckert |
| Model | FW 450X1800 |
| Year | 2000 |
| Condition | Used |
| Serial Number | 3347-105/267 |
| Stock Number | 17722 |
| Table length | 72" |
| Table width | 18" |
| Spindle drive | 15 HP |
| Spindle Speeds | 24-2250 RPM |
| Spindle Taper | No 50 |
| Spindle Nose to Table top | 1"-14" |
| X Travel | 36" |
| Y Travel | 16" |
| W Travel (Knee) | 16 |

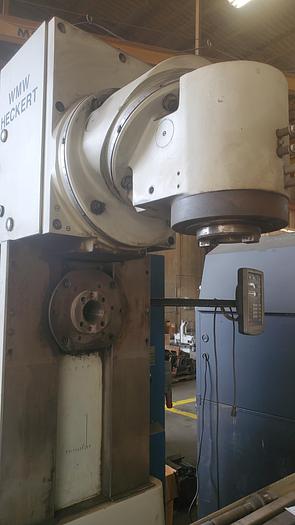

| Universal Head | Yes |
| Head Spindle Taper | No 50 |
| Universal Head Drive | 5 HP |
| Universal Heads Spindle Speeds | 28-1400 RPM |

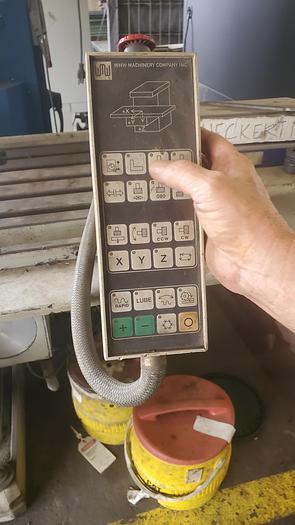

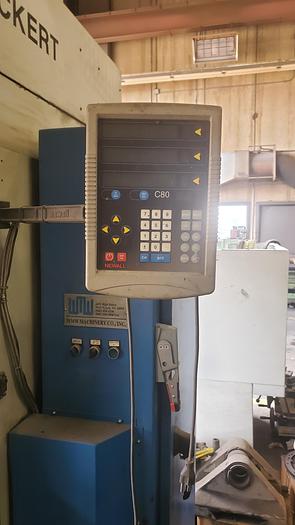

| Equipped With | Universal Head, Pendant Control, Newall DRO System |
