1992 Enshu Vertical Machining Center, Model 650VX, 26" X 79" Table, X-63", Y-26" 50 Taper, 20 HP, 6000 RPM, Fanuc 15M CNC, ID17525
1992 Enshu Vertical Machining Center, Model 650VX, 26" X 79" Table, X-63", Y-26" 50 Taper, 20 HP, 6000 RPM, Fanuc 15M CNC, ID17525
Location:Smyrna, TN
Description
1992 Enshu Vertical Machining Center, Model 650VX, 26" X 79" Table, X-63", Y-26" 50 Taper, 20 HP, 6000 RPM, Fanuc CNC, ID17525
Specifications
| Manufacturer | Enshu |
| Model | 650VX |
| Year | 1992 |
| Condition | Used |
| Stock Number | 17525 |
| Width | 25.6" |
| Length | 78.7" |
| Maximum | 6000 rpm |
| Spindle taper | #50 |
| X-axis travel | 63" |
| Y-axis travel | 26.6" |
| Z-axis travel | 26" |
| Main motor (hp) | 20hp |
| Maximum table load | lbs |
| Tool changer positions | 30atc |
| Spindle speed minimum (rpm) | 60rpm |
| Spindle nose to table top minimum | 7.9" |

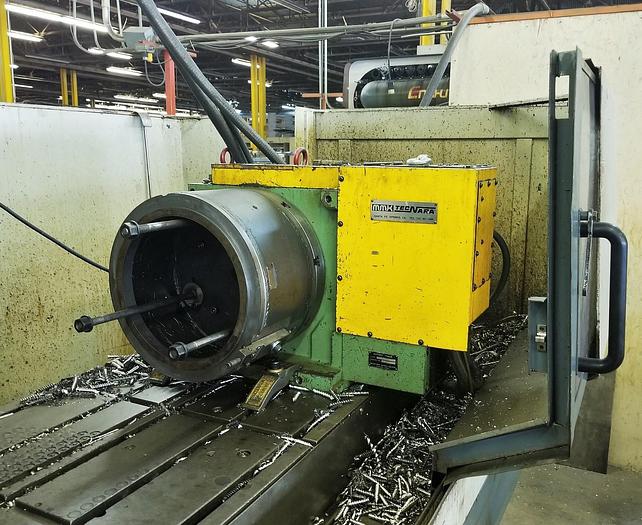

| Equipped With | Horizontal Chuck, FS 232 Interface, Flood Coolant System, Splash Guards, Way Covers, Hardened & Ground Box Ways |
