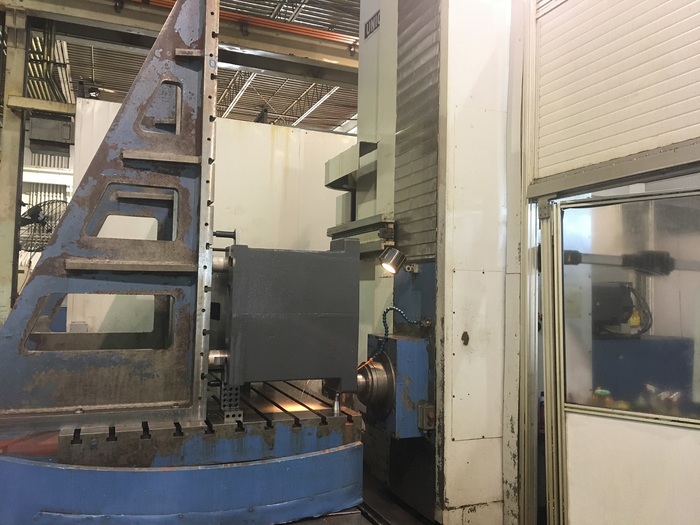

2001 Union Table Type CNC Horizontal Boring Mill, Model TC 130, Table 63" X 79", X=98", Y=98", Heidenhain CNC
No longer available
2001 Union Table Type CNC Horizontal Boring Mill, Model TC 130, Table 63" X 79", X=98", Y=98", Heidenhain CNC
Smyrna, TN
Description
2001 Union Table Type CNC Horizontal Boring Mill, Model TC 130, Table 63" X 79", X=98", Y=98", Full 4th Axis Rotary Table, Automatic Tool Changer, Heidenhain CNC ID16049
Specifications
Manufacturer | Union |
Model | TC 130 |
Year | 2001 |
Condition | Used |
Stock Number | 16049 |
Table length | 79" |
Table width | 63" |
X-axis | 98" |
Y-axis (vertical) | 98" |
Z-axis (spindle) | 30" |
W-axis (saddle) | 59" |
Spindle diameter | 5.1" |
Maximum load | 22000lbs |
Maximum spindle speed | 3000 rpm |
Equipped With | Heidenhain TNC 426 Control / 60 Tools ATC/ Thru spindle coolant and filtration system / chip conveyor |
Spindle taper | 50 |
Motor | 67hp |
