2005 Johnford Bridge Style Vertical Machining Center, Model DCM 2100SH, Table 60" X 86", X Travel 81", Y Travel 72", Z Travel, 31.5", Distance under Rail 37.5", 10,000 RPM, 30HP, ASH A63 tooling, Fanuc CNC.5,
2005 Johnford Bridge Style Vertical Machining Center, Model DCM 2100SH, Table 60" X 86", X Travel 81", Y Travel 72", Z Travel, 31.5", Distance under Rail 37.5", 10,000 RPM, 30HP, ASH A63 tooling, Fanuc CNC.5,
Texas
orCall (615) 459-7983
Description

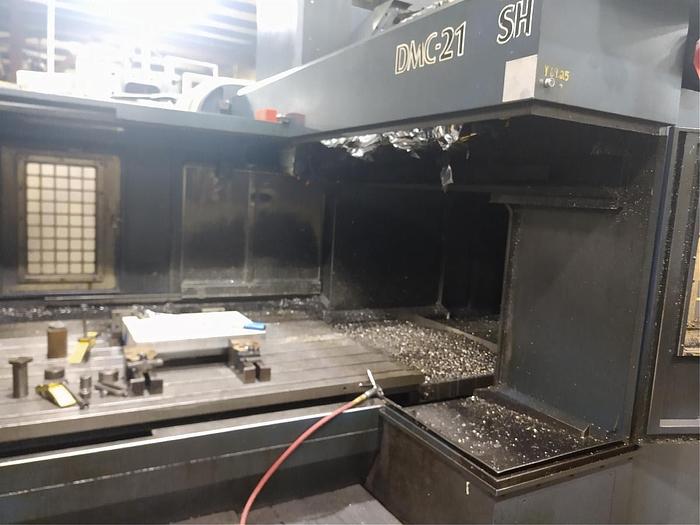

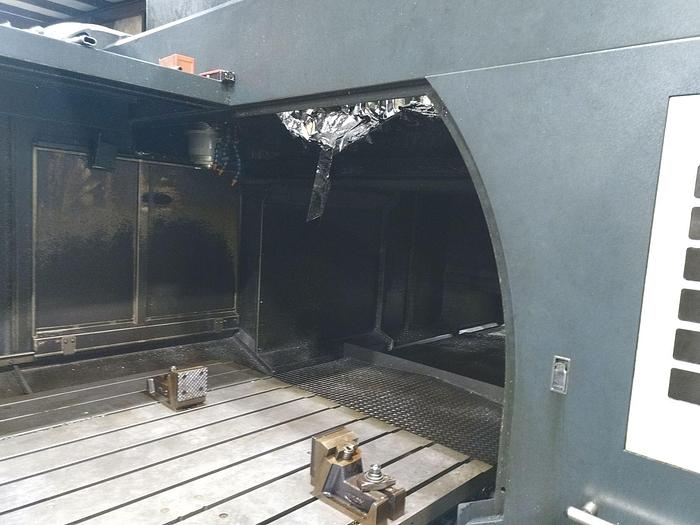

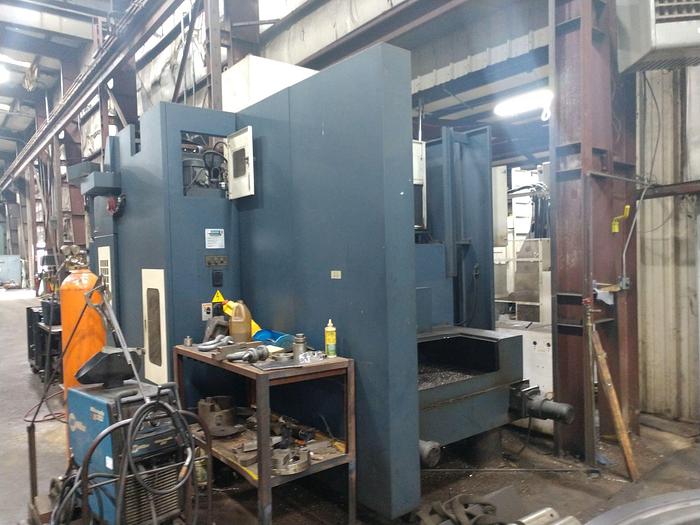

2005 Johnford Bridge Style Vertical Machining Center, Model DCM 2100SH, Table 60" X 86", X Travel 81", Y Travel 72", Z Travel 31.5", Distance under Rail 37.5", 10,000 RPM, 30HP, ASH A63 tooling, Fanuc CNC
Specifications
| Manufacturer | Johnford |
| Model | DCM 2100 SH |
| Year | 2005 |
| Condition | Used |
| Stock Number | 17704 |
| Table width | 60" |
| Table length | 87" |
| Table Load Capacity | 22,500 lbs |
| Spindle Drive Motor | 30 HP |
| Spindle Speeds | 10-6000 rpm |
| Spindle Taper | HSK A63 |
| X Travel | 81" |
| Y Travel | 71" |
| Z Travel | 31.5" |
| Distance Between Columns | 71.5" |
| Machine Weight | 55,500 lbs |

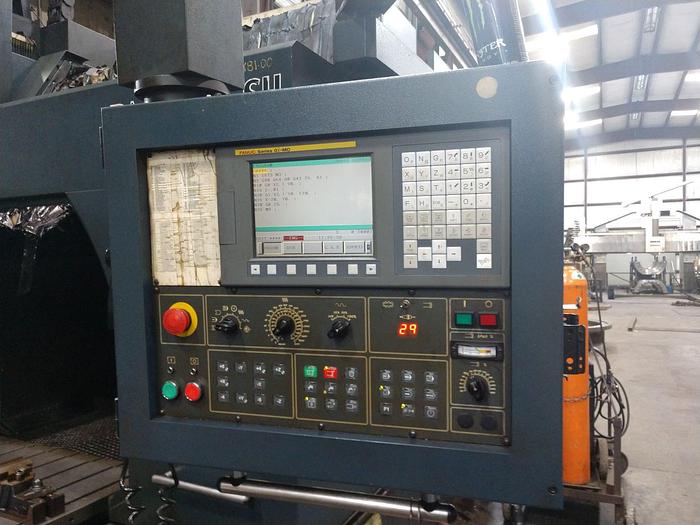

| Equipped with | 30 ATC, Full Enclosure, Fanuc CNC |
