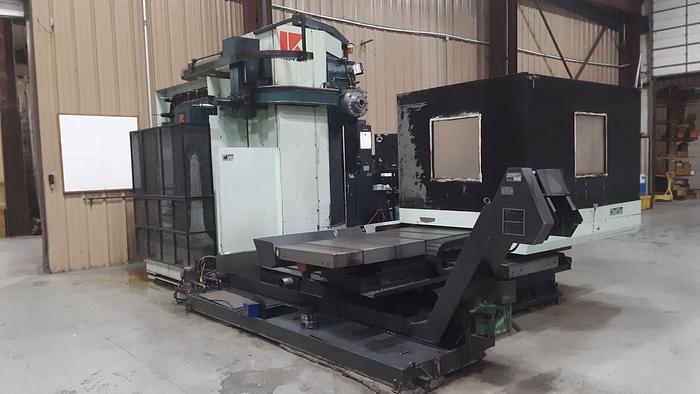

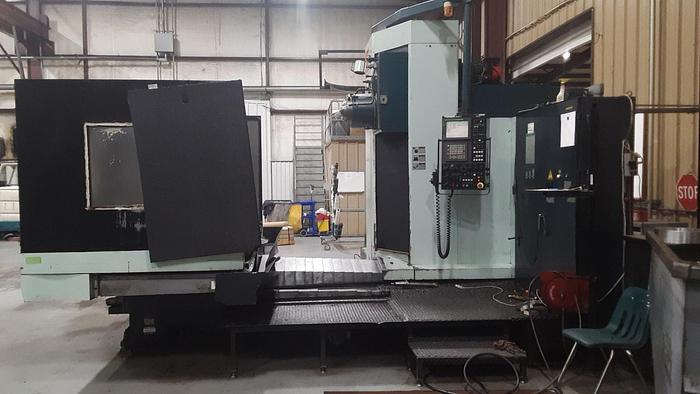

2008 Kuraki Table Type Boring Mill, KBT 11DX, Table 47" X 55", X-66", Y-49, Z-25.5", 40 ATC, 50 Taper. Fanuc 16M
Sold
2008 Kuraki Table Type Boring Mill, KBT 11DX, Table 47" X 55", X-66", Y-49, Z-25.5", 40 ATC, 50 Taper. Fanuc 16M
Location:Texas
Description
2008 Kuraki Table Type Boring Mill, KBT 11DX, Table 47" X 55", X-66", Y-49, Z-25.5", 40 ATC, 50 Taper. Fanuc 16M
Specifications
| Manufacturer | Kuraki |
| Model | KBT 11DX |
| Year | 2008 |
| Condition | Used |
| Stock Number | 17687 |
| Spindle diameter | 4.3" |
| Spindle drive hp | 20 |
| Spindle speed (rpm) | 2500 |
| Spindle taper | No 50 |
| Table length | 55" |
| Table width | 49" |
| X axis travel | 67" |
| Y axis travel | 49" |
| Quill travel | 25.5" |
| W Axis travel | 45 |

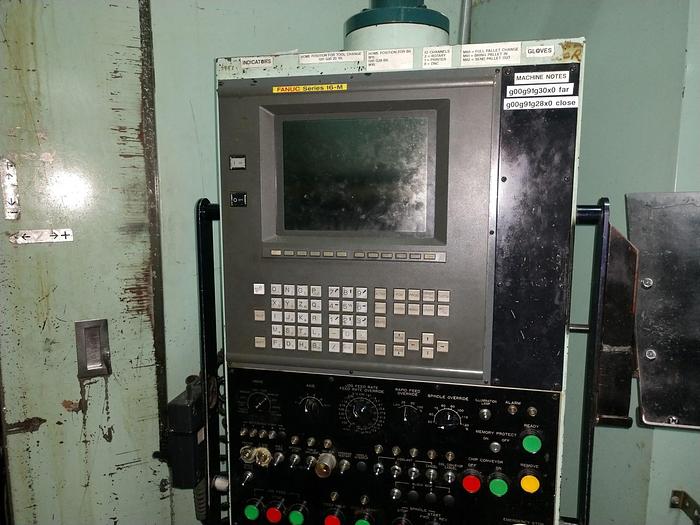

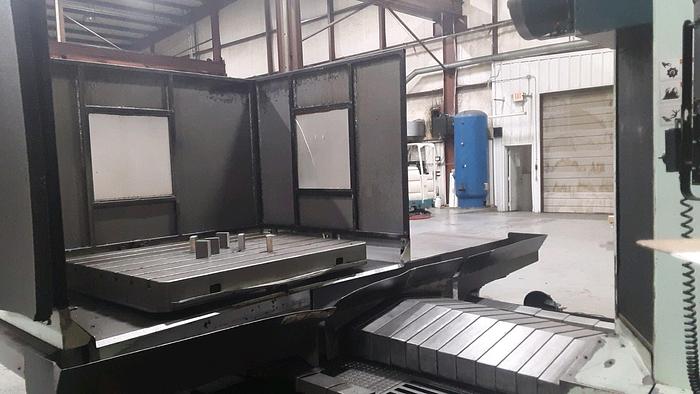

| Equipped with | Fanuc 16M CNC, 40 tool ATC, Enclosure, Chip Conveyor |
