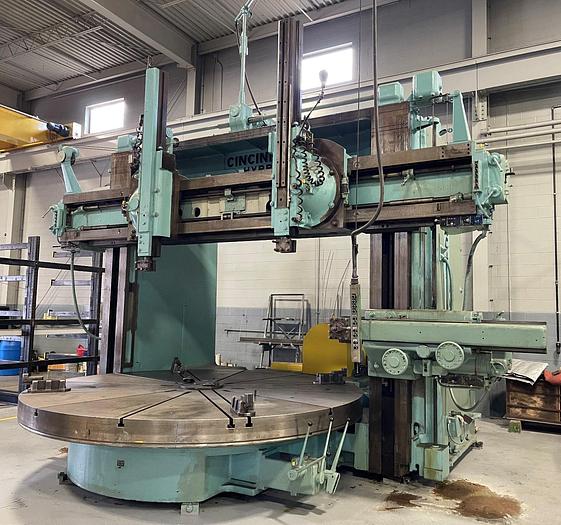

150" Cincinnati Hypro Vertical Boring Mill, Model Hypro, 144" Chuck, 150 " Swing, 90" Under Rail,50 HP, 20 RPM, (3) Heads, ID17683
No longer available
150" Cincinnati Hypro Vertical Boring Mill, Model Hypro, 144" Chuck, 150 " Swing, 90" Under Rail,50 HP, 20 RPM, (3) Heads, ID17683
Location:Raleigh, NC
Description
150" Cincinnati Hypro Vertical Boring Mill, Model Hypro, 144" Chuck, 150 " Swing, 90" Under Rail,50 HP, 20 RPM, (3) Heads
Specifications
| Manufacturer | Cincinnati |
| Model | Hypro |
| Year | 1965 |
| Condition | Used |
| Stock Number | 17683 |
| Table Diameter | 144" |
| Maximum Swing | 150" |
| Maximum Turning Height | 90" |
| Swivel Angle of Ram Head | +/- 45 Degrees |
| Table speeds | .5-20 rpm |
| Table Drive | 50 hp |
| Ram Head Travel | 54" |
| Machine Foot Print | 257" X 276" |
| Machine weight | 170,000 |
| Equipped with: | PENDANT CONTROLS, 144" T-SLOTTED TABLE WITH 4-FACE PLATE JAWS, 2-SWIVELLING VERTICAL RAM HEADS, SIDE HEAD, THREAD AND DRUM SCORING, ELECTRIC RAIL CLAMPING & UNCLAMPING |
