1990 5.12" CNC Toshiba Horizontal Boring Mill Table, BTD 13F.R22, Table Size 70.8" X 86.6", X - 119", Y - 90.5", 40HP, 2500 RPM, Tosunc 888, ID17674
1990 5.12" CNC Toshiba Horizontal Boring Mill Table, BTD 13F.R22, Table Size 70.8" X 86.6", X - 119", Y - 90.5", 40HP, 2500 RPM, Tosunc 888, ID17674
Location:Louisiana
or
Call (615) 459-7983
Description
1990 5.12" CNC Toshiba Horizontal Boring Mill Table, BTD 13F.R22, Table Size 70.8" X 86.6", X - 119", Y - 90.5", 40HP, 2500 RPM, Tosunc 888, ID17674
Specifications
| Manufacturer | Toshiba |
| Model | BFT 13F.R22 |
| Year | 1990 |
| Condition | Used |
| Stock Number | 17674 |
| Spindle diameter | 5.12" |
| Spindle drive hp | 40 |
| Spindle speed (rpm) | 2500 |
| Spindle taper | No 50 |

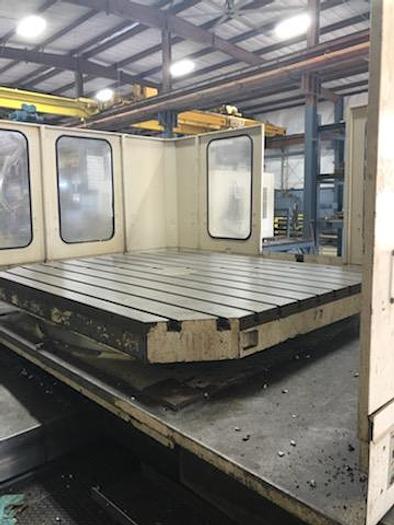

| Table length | 70.8" |
| Table width | 86.6" |
| Table Capacity | 22,000 lbs |
| X axis travel | 119.5" |
| Y axis travel | 90.5" |
| Quill travel | 28.5" |
| W Axis travel | 62.9" |

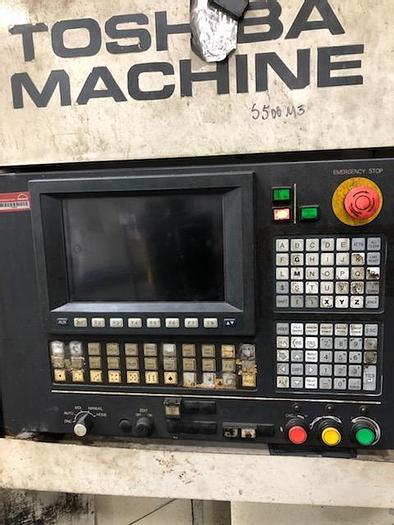

| Equipped with | Tosnuc 888 CNC, Full "B" Axis, Way Covers, Full Enclosure, Coolant Thru Spindle |
