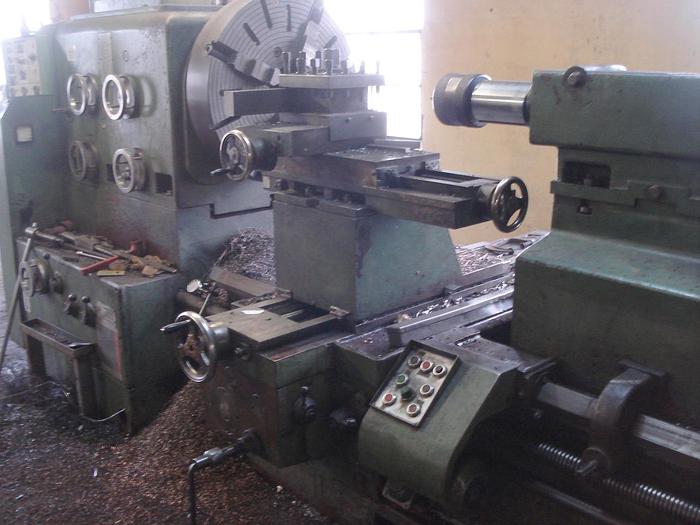

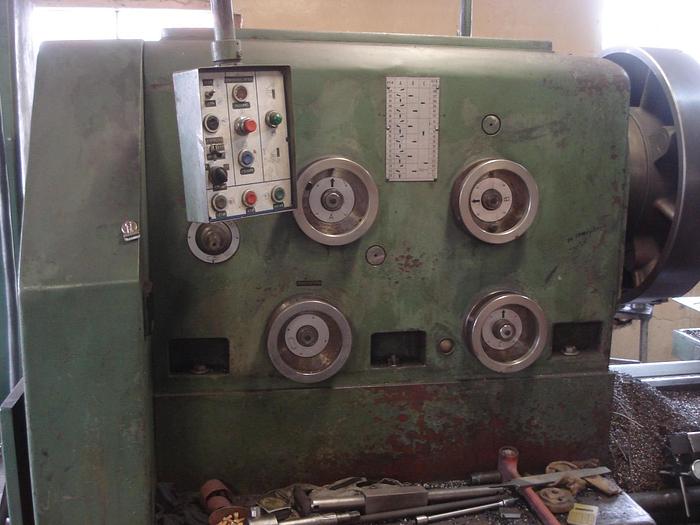

Lansing Engine lathe 60" X 240", 60" Swing, 43" Swing over Cross Slide, 240" Between centers, 50 HP, 310 RPM, 4" Spindle Bore, Pendant Control
No longer available
Lansing Engine lathe 60" X 240", 60" Swing, 43" Swing over Cross Slide, 240" Between centers, 50 HP, 310 RPM, 4" Spindle Bore, Pendant Control
Location:Raleigh, NC
Description
Lansing Engine lathe 60" X 240", 60" Swing, 43" Swing over Cross Slide, 240" Between centers, 50 HP, 310 RPM, 4" Spindle Bore, Pendant Control
Specifications
| Manufacturer | Lansing |
| Model | GR |
| Year | 1971 |
| Condition | Used |
| Stock Number | 17673 |
| Swing | 60" |
| Swing in gap | 70" |
| Swing over cross slide | 43" |
| Distance between centers | 240" |
| Spindle drive motor | 50 hp |
| Spindle speed (maximum) | 2.8-310 rpm |
| Spindle bore | 4" |
| Machine weight | 19,500 lbs |

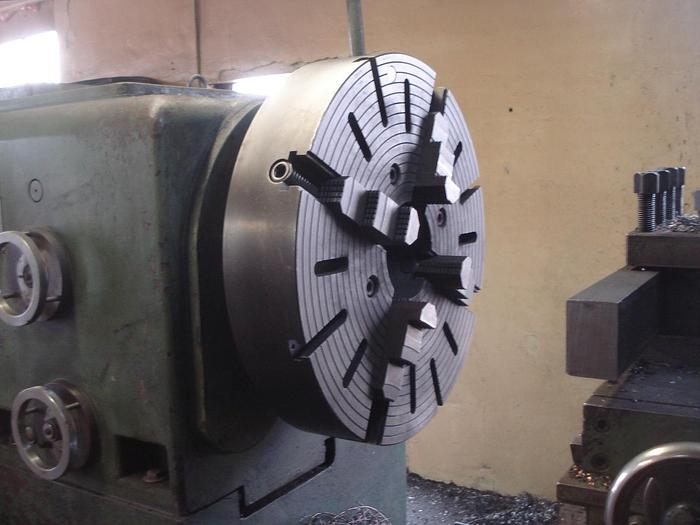

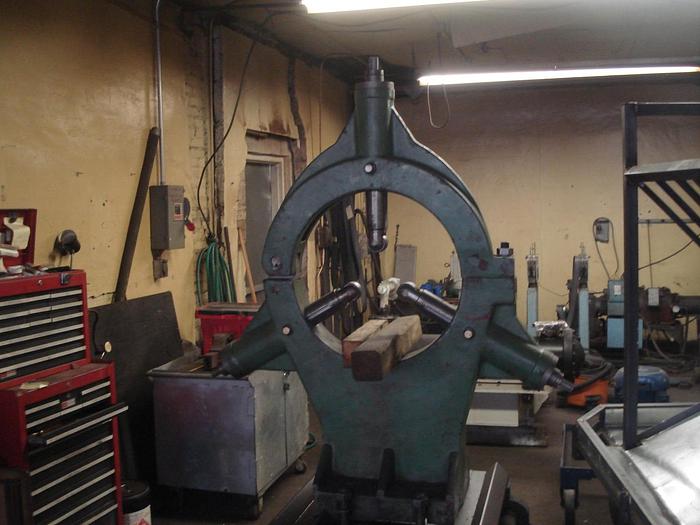

| Equipped With | Inch/Metric Threading, 31.5" 4 Jaw Chuck, 31.5" 3 Jaw Chuck, 21" Steady Rest, Pendant Control |
